NIR · 4K UHD · Ultra-telephoto

NIR 4K ultra-telephoto drone detection system

Long-range NIR imaging for fixed-wing UAVs and consumer or industrial multirotors.

8 MP optics1200 / 1500 / 1800 mmNIR haze imaging

Explore field tests Discuss your application

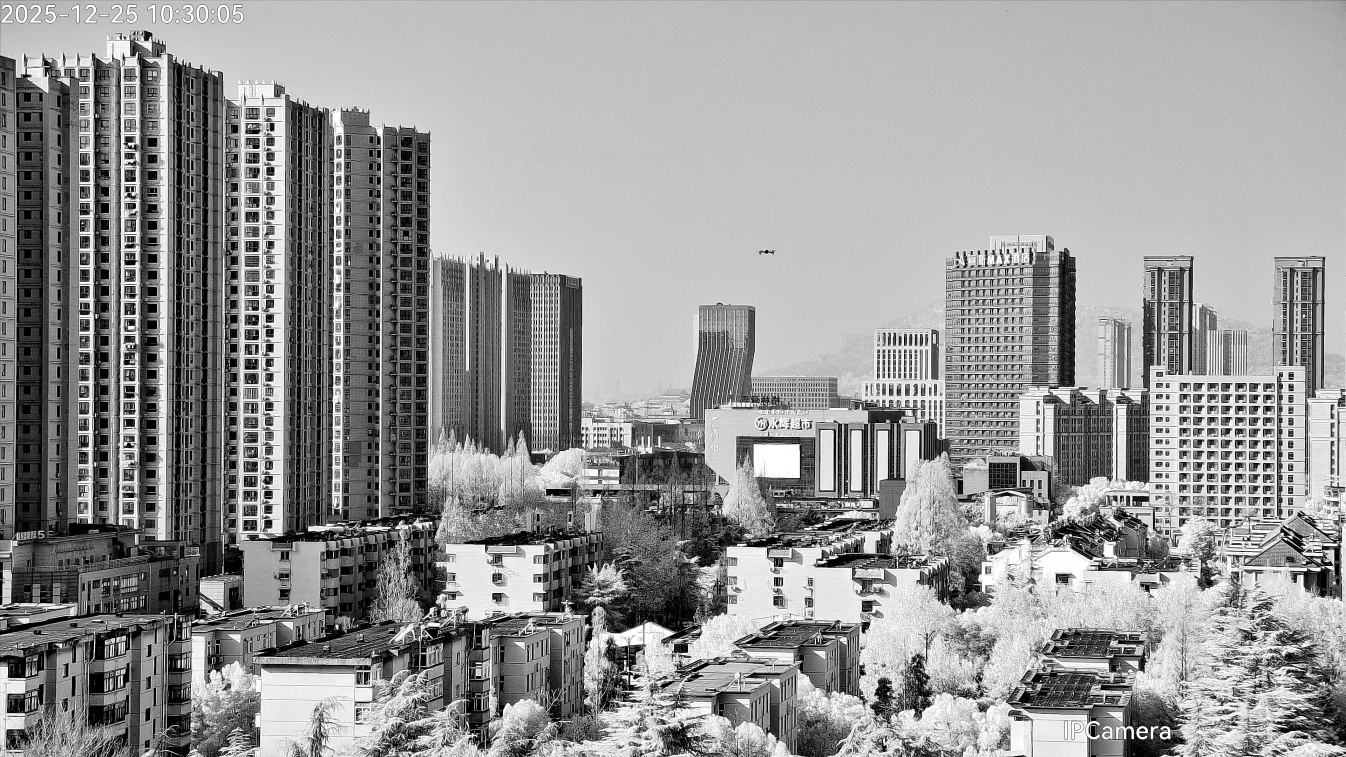

Consumer multirotor drone in an actual NIR cityscape test at 1 km — **ACTUAL NIR FIELD IMAGE**
Consumer multirotor · 1 kmClick to enlarge ↗

>60km

Islands & vessels

>50km

Reference fixed-wing drones

>12km

Reference multirotor drones

Reference ranges depend on target size, atmospheric conditions and configuration.

01 / Field evidence

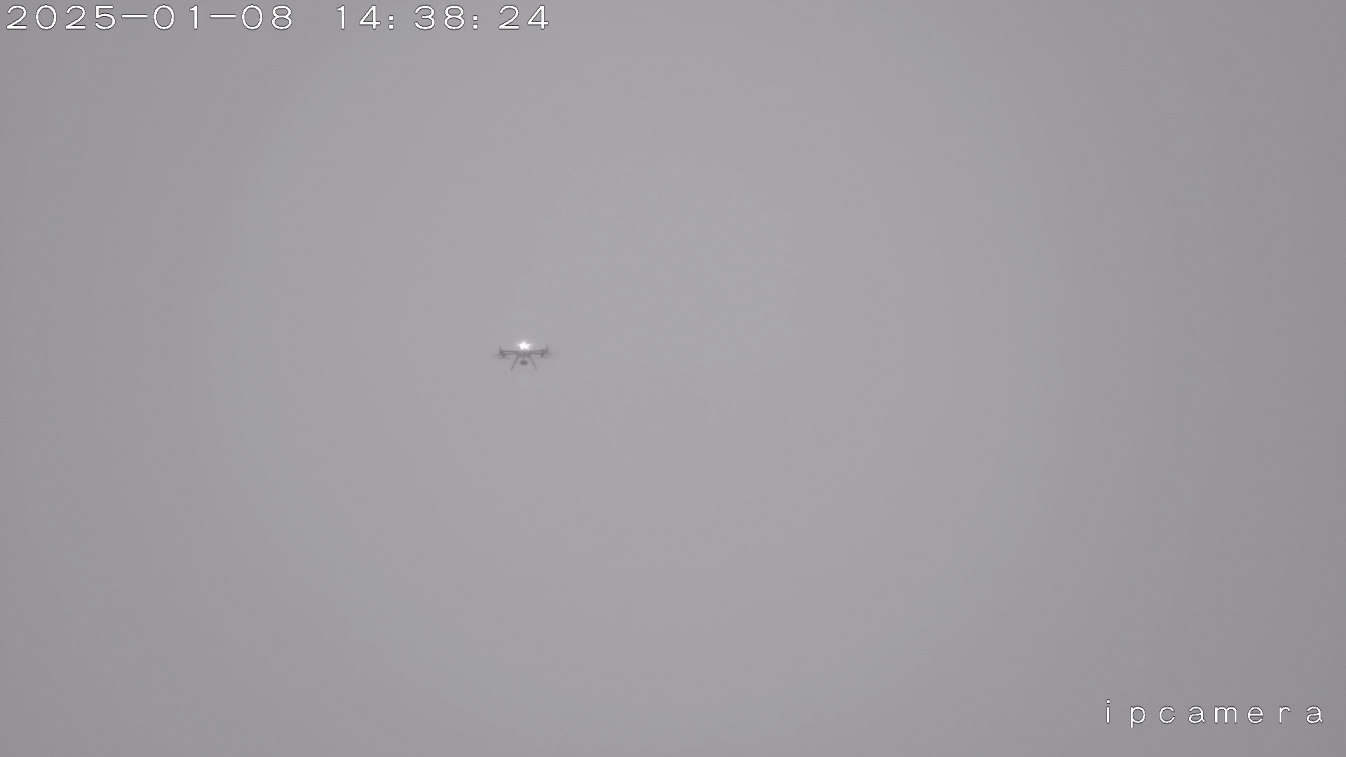

Full source frame · No image enhancement appliedEnlarge ↗

Recorded test distance

1.5 km

Atmospheric visibility

Reference target dimensions

Test condition

02 / Long-distance imaging

65 kmRecorded imaging distance

15 kmReported atmospheric visibility

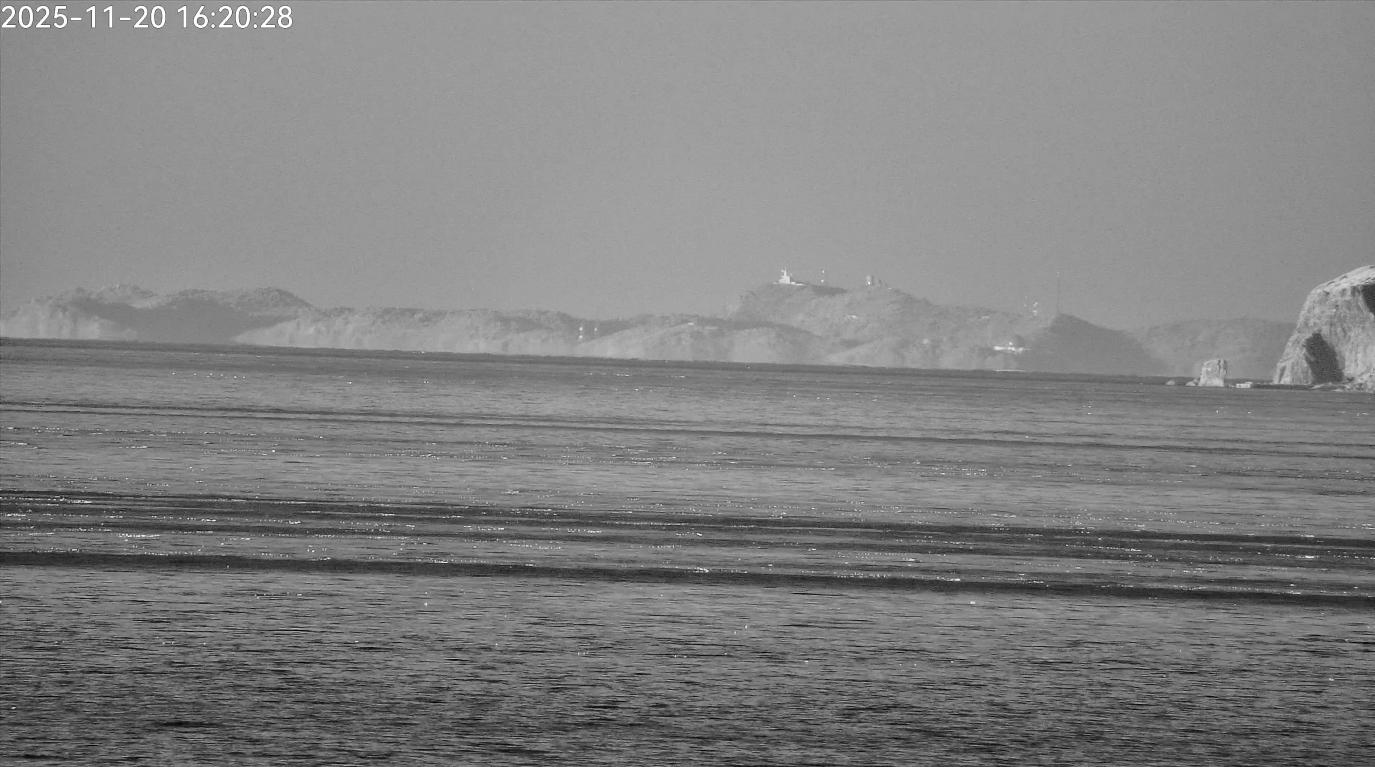

Actual near-infrared island image recorded at 65 km — **Near-infrared island image at 65 km**Original field-test frame. Click to inspect the image.

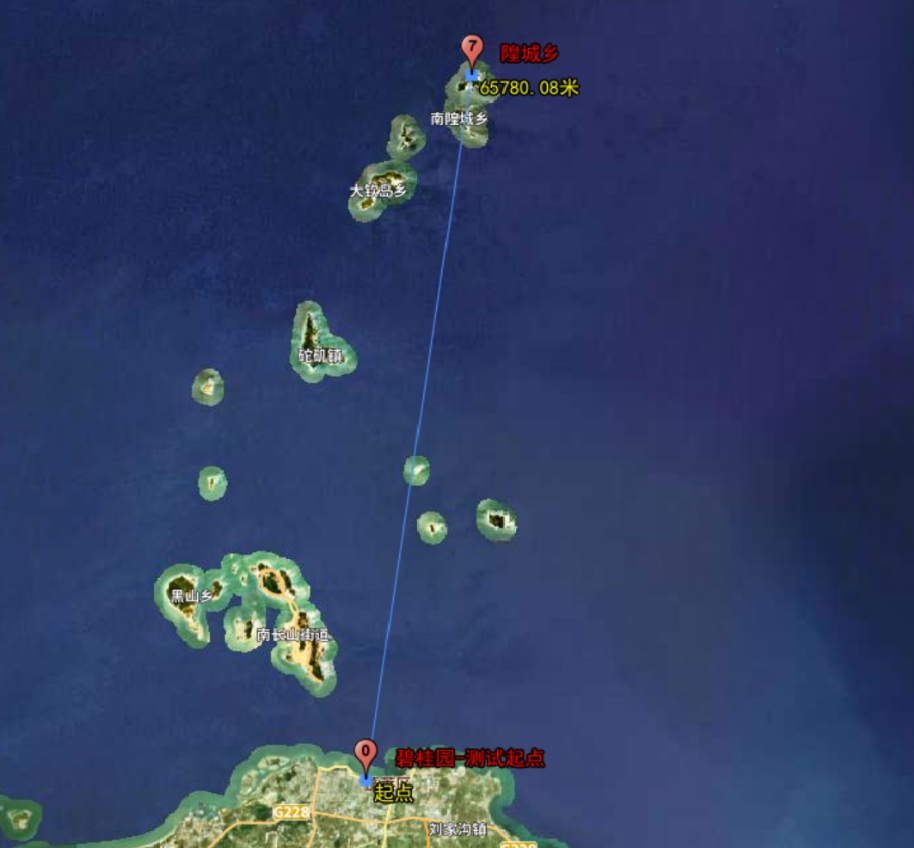

Original test-location map with a measured sea route of 65780.08 metres — **Test location & measured route**Original map retained · Approx. 65.78 km measured path

03 / Imaging capabilities

01 / 4K UHD

More image detail

3840 × 2160 resolution provides four times the pixel count of 1080p. At the same field of view, a matched imaging system can capture more target detail.

02 / NIR IMAGING

Imaging in haze

Near-infrared imaging for improved visibility in haze.

03 / ZOOM & FOCUS

Focus retained while zooming

After initial focus, focus retention during zoom reduces refocusing. Autofocus and motorized focus are also supported. Changes in distance or conditions may require focus adjustment.

04 / Three lens models

Lens configuration	1200 mmSK120/48X-1200NIR	1500 mmSK120/48X-1500NIR	1800 mmSK120/48X-1800NIR
Focal length	25–1200 mm	31–1500 mm	37.5–1800 mm
Image circle / sensor format	Ø12.9 mm 1/1.2-type	Ø16 mm 1-type	Ø20 mm 1.25-type
F-number	F4.8–F10	F6–F12.5	F7.2–F15
Pixel criterion*	≥2.5 μm	≥3.1 μm	≥3.75 μm
Focus modes	Focus retained during zooming / Autofocus / Motorized focus	Focus retained during zooming / Autofocus / Motorized focus	Focus retained during zooming / Autofocus / Motorized focus

* Pixel criteria are reproduced from the product document and do not alone define a camera sensor’s actual pixel pitch. Confirm sensor selection and camera output with our team.

Reference prices from the product document

1200 mm250,000 / unit

1500 mm300,000 / unit

1800 mm350,000 / unit

Reference figures as supplied. Currency, taxes and included equipment require confirmation. Contact our sales team for a quotation.

05 / Mechanical reference

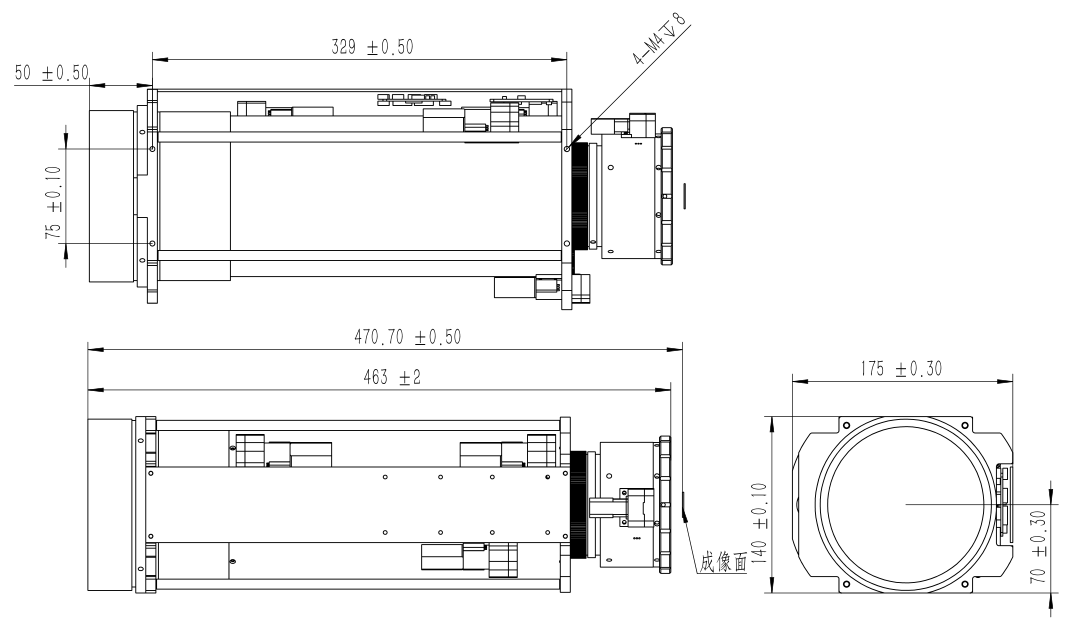

Mechanical reference drawing A — Reference drawing A↗

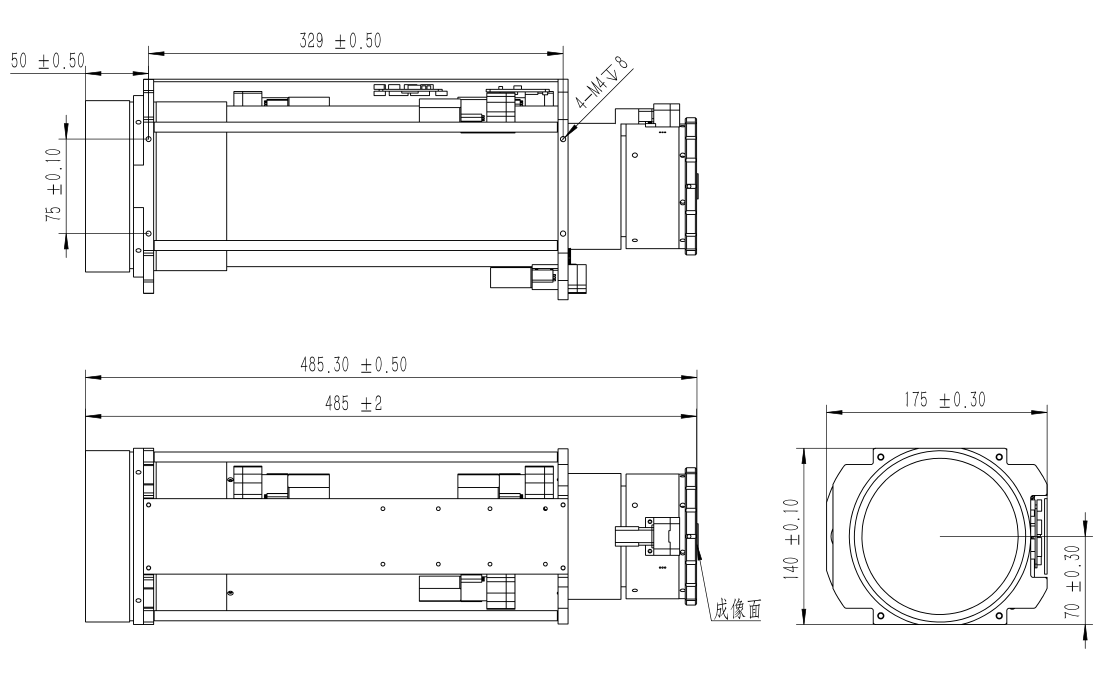

Mechanical reference drawing B — Reference drawing B↗

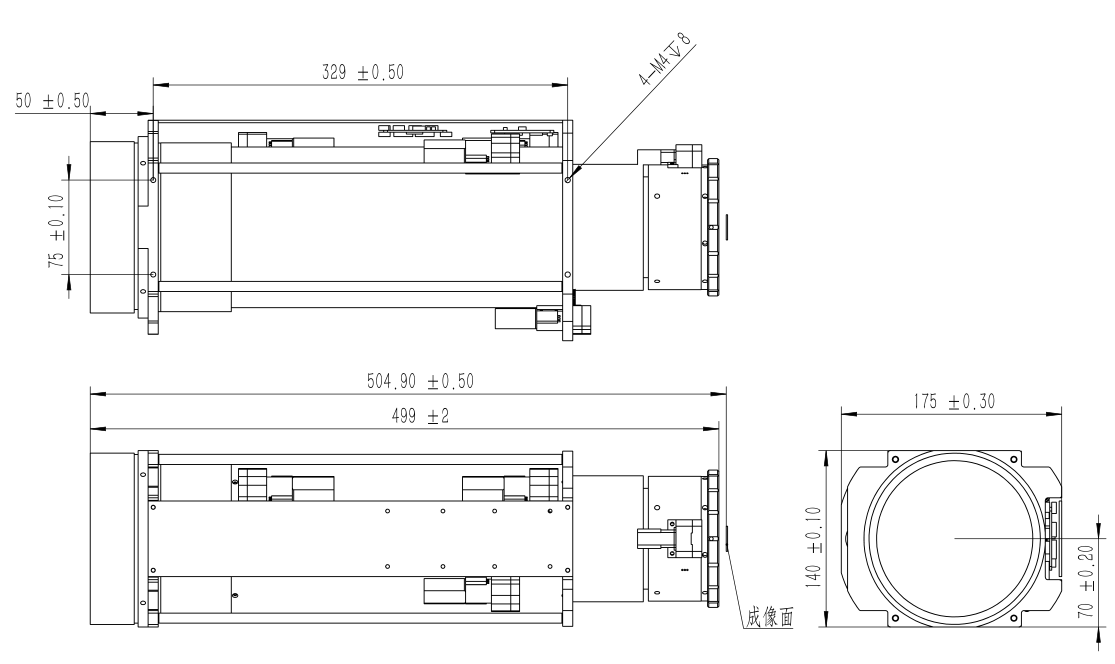

Mechanical reference drawing C — Reference drawing C↗

Discuss your requirements

Contact us

Contact our team for detailed specifications, demonstrations and configuration advice.
